How to install a single phase MID electric energy meter
The M1DL-MID is a single phase MID energy meter designed for direct connection to distribution networks. It measures the active energy in the input direction and displays the data in seven digits on the LCD. The device also has the feature of outputting SO pulses. These features allow users to easily and accurately calculate energy consumption and save money. The MID meter records the energy consumption of the charging unit and specific charger. It complies with the Measuring Instruments Directive and provides a more accurate measurement of energy consumption. To install a MID meter, connect the meter to the charger and mount it on a DIN rail. When installing the meter, make sure the screws are securely fastened. It is also recommended to use insulating plates over the screws, as loose screws can cause a fire. Finally, install the STP communication cable according to the picture.
The MID serial number is located below the MID Power Meter screen. If this number is entered incorrectly, the device will not function and cannot be edited. A red warning icon will appear next to the MID serial number. It will also display "Not Found" as the error message. The DIN rail mount energy meter is designed to be mounted on a DIN rail and is ideal for cost allocation and sub billing applications. The compact meters have gauge value and can operate on single-phase or three-phase systems. It has Class B or Class 1.0 accuracy and is MID and IEC certified. DIN rail mounted energy meters are available in a variety of configurations and module sizes. Some models also include pulse communication and Modbus communication for interfacing with BMS and AMR systems.
It is compatible with many power supply types and functions. These meters provide a variety of functions including a power management module, LCD driver and SPI/I2C interface. They also support low power temperature compensation and are MID certified. The DLMS/COSEM standard for single-phase energy meters is a set of interface classes that enable communication between energy meter data and external devices. These interfaces support remote meter reading, control and value-added services for energy metering. It is an international standard published as IEC 62056. Similarly, COSEM or Companion Specification for Energy Metering provides an object-oriented interface model for interacting with energy metering devices. It is intended to provide a manufacturer independent method to retrieve data from any meter.

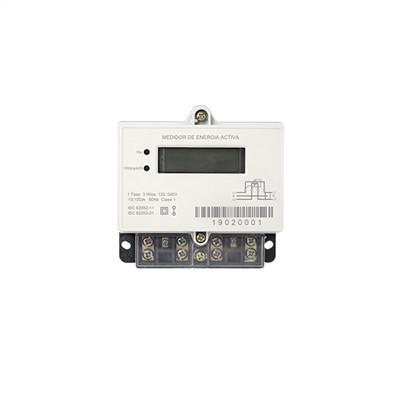

Additionally, it includes authentication and encryption services based on symmetric encryption. This ensures secure data exchange. IEC 62056 is a set of international standards for the exchange of electricity meter data. These standards are developed by the DLMS Users Association. The association maintains a Type D relationship with IEC TC13 WG14 and provides maintenance services for the IEC 62056 DLMS/COSEM specification. YTL metering single phase electricity meters are designed to monitor energy consumption on single phase power lines. It measures voltage, current, active and reactive power, and power factor. It also has the ability to record MD for the current month, last month or last two months. In addition, the electricity meter also measures electricity bills and total active energy.
